radosgw多站点

Posted on In Views: Word count in article: 7.9k Reading time ≈ 1:19

一、概述

1.1 概念与术语

radosgw多站点指的是在多个地理位置或数据中心之间进行数据复制和同步，用于实现负载均衡、灾备恢复以及满足数据在特定地理位置存储要求。

  • zone:
    多站点中最小的配置单元，通俗指在同一地域内，电力和网络互相独立的物理区域。每个 zone 都有一个或多个 ceph-radosgw 实例。

  • zone group:

    由一个或多zone组成，包含一个master zone，其它zone称为secondary zone，zone group内的zone之间同步数据，以实现数据备份和灾难恢复。并且支持active-active与active-passive两种模式。

  • realm:

    由一个或多zone group组成，包含一个master zone group,其它zone group称为secondary zone group。

  • period：

    跟踪zone、zone group和realm的配置状态。

中英文对照表

英文 中文
zone 区域或站点
master zone 主区域或主站点
secondary zone 备区域或备站点
zone group 区域组
master zone group 主区域组
secondary zone group 备区域组
realm 域

1.2 演示环境说明

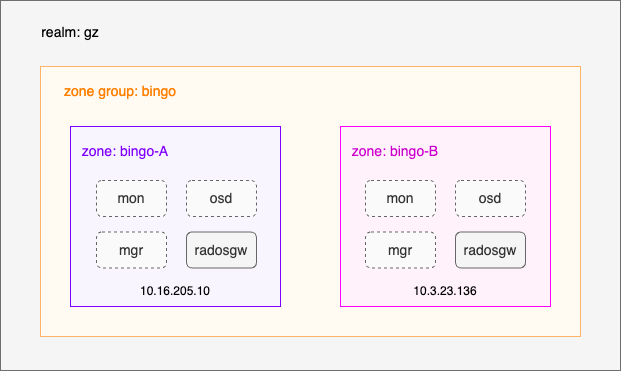

演示环境为单realm下的单zone group，zone group内有两个zone。bingo-A为已存放数据的老集群，准备作为主站点，bingo-B为未存放数据的新集群，用来作为灾备的备站点。bingo-A与bingo-B的Ceph版本为12.2.x。

二、主站点配置

2.1 主站点环境查看

radosgw安装后会在Ceph集群创建一些带有rgw的名字的pool。如果上传过对象还会自动创建default.rgw.buckets.index和default.rgw.buckets.data这两个pool。

1
2
3
4
5
6
7
[root@node-10 ~]# ceph osd pool ls | grep rgw
.rgw.root
default.rgw.control
default.rgw.meta
default.rgw.log
default.rgw.buckets.index
default.rgw.buckets.data

bingo-A已经存放了数据，为后续测试向bingo-B数据同步做铺垫。

1
2
3
4
5
6
7
8
9
10
11
12
[root@node-10 ~]# ceph df
GLOBAL:
    SIZE        AVAIL       RAW USED     %RAW USED
    1.83TiB     1.81TiB      14.0GiB          0.75
POOLS:
    NAME                          ID      USED        %USED     MAX AVAIL     OBJECTS
    .rgw.root                     157     1.09KiB         0        440GiB           4
    default.rgw.control           158          0B         0        440GiB           8
    default.rgw.meta              159        786B         0        440GiB           5
    default.rgw.log               160          0B         0        440GiB         175
    default.rgw.buckets.index     161          0B         0        440GiB          16
    default.rgw.buckets.data      162     15.3MiB         0        440GiB           5  # 已存有数据

注意：配置主站点前如果ceph.conf中有rgw_admin_entry选项请先删掉。

2.2 创建域

radosgw多站点中，可能存在不同的zone group和zone。然而，它们必须在realm中协同工作。所有的radosgw从master zone group的master zone主机上的ceph-radosgw守护进程检索其配置。

2.2.1创建前查看

1
2
3
4
5
[root@node-10 ~]# radosgw-admin realm list
{
    "default_info": "",   # 可以看到当前没有realm
    "realms": []
}

2.2.2 创建

radosgw-admin realm create --rgw-realm={realm-name} [--default]

  • 参数说明：

    –default：设置该realm为默认realm。如果没有指定 --default，添加 zone-groups 和zone需要指定 --rgw-realm 标志或 --realm-id 标志，以便在添加 zone group 和 zone 时标识realm。

1
2
3
4
5
6
7
8
// 在创建了realm 后，radosgw-admin 将回显 realm 配置
[root@node-10 ~]# radosgw-admin realm create --rgw-realm=gz --default
{
    "id": "31a49490-d7f4-42c6-ad88-15493474a3d5",
    "name": "gz",
    "current_period": "e3f5f0c1-1ede-4ce5-ae07-d48367b4a28b",
    "epoch": 1
}

2.2.3 验证

1
2
3
4
5
6
7
[root@node-10 ~]# radosgw-admin realm get
{
    "id": "31a49490-d7f4-42c6-ad88-15493474a3d5",
    "name": "gz",
    "current_period": "e3f5f0c1-1ede-4ce5-ae07-d48367b4a28b",
    "epoch": 1
}

2.3 重命名默认区域组和区域

2.3.1 重命名前查看

通常情况下，radosgw启动后会自动创建一个名为default的zone group，并且会在该zone group下自动创建一个名为default的zone。可以通过下面命令查看验证。

radosgw-admin zonegroup list ：查看所有的zone group

radosgw-admin zonegroup get --rgw-zonegroup={zone-group-name}：查看某个zone group详细信息

radosgw-admin zone list ：查看所有的zone

radosgw-admin zone get --rgw-zone={zone-name}：查看某个zone详细信息

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
[root@node-10 ~]# radosgw-admin zonegroup list
{
    "default_info": "",
    "zonegroups": [
        "default"
    ]
}

[root@node-10 ~]# radosgw-admin zonegroup get --rgw-zonegroup=default
{ # 回显内容有删减
    "id": "89129545-7900-46a3-be71-943a85bba582",
    "name": "default",
    "api_name": "default",
    "is_master": "true",
    "endpoints": [],
    "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b",
    "zones": [
        {
            "id": "2dfd246d-bf16-4053-93e4-1f78570f775b",
            "name": "default",
            "endpoints": [],
            "log_meta": "false",
            "log_data": "false",
            "bucket_index_max_shards": 0,
            "read_only": "false",
        }
    ],
    "realm_id": ""
}

[root@node-10 ~]# radosgw-admin zone list
{
    "default_info": "",
    "zones": [
        "default"
    ]
}

[root@node-10 ~]# radosgw-admin zone get --rgw-zone=default
{
    "id": "2dfd246d-bf16-4053-93e4-1f78570f775b",
    "name": "default",
    "domain_root": "default.rgw.meta:root",
    "control_pool": "default.rgw.control",
    "gc_pool": "default.rgw.log:gc",
    "lc_pool": "default.rgw.log:lc",
    "log_pool": "default.rgw.log",
    "intent_log_pool": "default.rgw.log:intent",
    "usage_log_pool": "default.rgw.log:usage",
    "reshard_pool": "default.rgw.log:reshard",
    "user_keys_pool": "default.rgw.meta:users.keys",
    "user_email_pool": "default.rgw.meta:users.email",
    "user_swift_pool": "default.rgw.meta:users.swift",
    "user_uid_pool": "default.rgw.meta:users.uid",
    "system_key": {
        "access_key": "",
        "secret_key": ""
    },
    "placement_pools": [
        {
            "key": "default-placement",
            "val": {
                "index_pool": "default.rgw.buckets.index",
                "data_pool": "default.rgw.buckets.data",
                "data_extra_pool": "default.rgw.buckets.non-ec",
                "index_type": 0,
                "compression": ""
            }
        }
    ],
    "metadata_heap": "",
    "tier_config": [],
    "realm_id": ""
}

2.3.2 重命名

radosgw-admin zonegroup rename --rgw-zonegroup {zone-group-name} --zonegroup-new-name={new-zone-group-name}

radosgw-admin zone rename --rgw-zonegroup {zone-group-name} --rgw-zone {zone name} --zone-new-name={new-zone-name}

1
2
[root@node-10 ~]# radosgw-admin zonegroup rename --rgw-zonegroup default --zonegroup-new-name=bingo
[root@node-10 ~]# radosgw-admin zone rename --rgw-zonegroup bingo --rgw-zone default --zone-new-name=bingo-A

2.3.3 验证

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
[root@node-10 ~]# radosgw-admin zonegroup list
{ # 如果还有名为default的zone group不用在意
    "default_info": "",
    "zonegroups": [
        "bingo"
    ]
}

[root@node-10 ~]# radosgw-admin zonegroup get --rgw-zonegroup=bingo
{ # 回显内容有删减
    "id": "89129545-7900-46a3-be71-943a85bba582", # id 没有变
    "name": "bingo", # zone group已改名
    "api_name": "default",
    "is_master": "true",
    "endpoints": [],
    "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b",
    "zones": [
        {
            "id": "2dfd246d-bf16-4053-93e4-1f78570f775b",
            "name": "bingo-A",
            "endpoints": [],
            "log_meta": "false",
            "log_data": "false",
            "bucket_index_max_shards": 0,
            "read_only": "false",
        }
    ],
    "realm_id": ""
}

[root@node-10 ~]# radosgw-admin zone list
{ # 如果还有名为default的zone不用在意
    "default_info": "",
    "zones": [
        "bingo-A"
    ]
}

[root@node-10 ~]# radosgw-admin zone get --rgw-zone=bingo-A
{ # 回显内容有删减
    "id": "2dfd246d-bf16-4053-93e4-1f78570f775b", # id没有改变
    "name": "bingo-A", # zone已改名
    "domain_root": "default.rgw.meta:root",
    "control_pool": "default.rgw.control",
    "gc_pool": "default.rgw.log:gc",
    "lc_pool": "default.rgw.log:lc",
    "log_pool": "default.rgw.log",
    "intent_log_pool": "default.rgw.log:intent",
    "usage_log_pool": "default.rgw.log:usage",
    "reshard_pool": "default.rgw.log:reshard",
    "user_keys_pool": "default.rgw.meta:users.keys",
    "user_email_pool": "default.rgw.meta:users.email",
    "user_swift_pool": "default.rgw.meta:users.swift",
    "user_uid_pool": "default.rgw.meta:users.uid",
    "realm_id": ""
}

2.4 设置主区域组和主区域

2.4.1 设置主区域组

radosgw-admin zonegroup modify --rgw-realm={realm-name} --rgw-zonegroup={zone-group-name} --endpoints={url} --master --default

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
[root@node-10 ~]# radosgw-admin zonegroup modify --rgw-realm=gz --rgw-zonegroup=bingo --endpoints=http://10.16.205.10:80 --master --default
{
    "id": "89129545-7900-46a3-be71-943a85bba582",
    "name": "bingo",
    "api_name": "default",
    "is_master": "true", # master zone group
    "endpoints": [
        "http://10.16.205.10:80"
    ],
    "hostnames": [],
    "hostnames_s3website": [],
    "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b",
    "zones": [
        {
            "id": "2dfd246d-bf16-4053-93e4-1f78570f775b",
            "name": "bingo-A",
            "endpoints": [],
            "log_meta": "false",
            "log_data": "false",
            "bucket_index_max_shards": 0,
            "read_only": "false",
            "tier_type": "",
            "sync_from_all": "true",
            "sync_from": []
        }
    ],
    "placement_targets": [
        {
            "name": "default-placement",
            "tags": []
        }
    ],
    "default_placement": "default-placement",
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
}

2.4.2 设置主区域

radosgw-admin zone modify --rgw-realm={realm-name} --rgw-zonegroup={zone-group-name} --rgw-zone={zone-name} --endpoints={url} --master --default

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
[root@node-10 ~]# radosgw-admin zone modify --rgw-realm=gz --rgw-zonegroup=bingo --rgw-zone=bingo-A --endpoints=http://10.16.205.10:80 --master --default
{ # 回显内容有删减
    "id": "2dfd246d-bf16-4053-93e4-1f78570f775b",
    "name": "bingo-A",
    "domain_root": "default.rgw.meta:root",
    "control_pool": "default.rgw.control",
    "gc_pool": "default.rgw.log:gc",
    "lc_pool": "default.rgw.log:lc",
    "log_pool": "default.rgw.log",
    "intent_log_pool": "default.rgw.log:intent",
    "usage_log_pool": "default.rgw.log:usage",
    "reshard_pool": "default.rgw.log:reshard",
    "user_keys_pool": "default.rgw.meta:users.keys",
    "user_email_pool": "default.rgw.meta:users.email",
    "user_swift_pool": "default.rgw.meta:users.swift",
    "user_uid_pool": "default.rgw.meta:users.uid",
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
}

2.4.3 验证

radosgw-admin zonegroup get [ --rgw-zonegroup={zone-group-name} ]

说明：

  • 在2.4.1节设置主区域组的时候已将bingo设置为default zone group，以后zone group操作如果没有指定名字，则默认是bingo这个zone group。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
[root@node-10 ~]# radosgw-admin zonegroup get
{
    "id": "89129545-7900-46a3-be71-943a85bba582",
    "name": "bingo",
    "api_name": "default",
    "is_master": "true",
    "endpoints": [
        "http://10.16.205.10:80"
    ],
    "hostnames": [],
    "hostnames_s3website": [],
    "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b",
    "zones": [
        {
            "id": "2dfd246d-bf16-4053-93e4-1f78570f775b",
            "name": "bingo-A",
            "endpoints": [
                "http://10.16.205.10:80"
            ],
            "log_meta": "false",
            "log_data": "false",
            "bucket_index_max_shards": 0,
            "read_only": "false",
            "tier_type": "",
            "sync_from_all": "true",
            "sync_from": []
        }
    ],
    "placement_targets": [
        {
            "name": "default-placement",
            "tags": []
        }
    ],
    "default_placement": "default-placement",
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
}

2.5 创建系统同步用户

secondary zone必须向master zone获取realm和period用于数据同步，获取前需要进行身份验证，我们需要在master zone上创建一个系统级别用户用于身份验证。

2.5.1 创建前查看

radosgw-admin user info --uid={user-name}：查看用户信息

1
2
[root@node-10 ~]# radosgw-admin user info --uid=sync-user
could not fetch user info: no user info saved # 此用户名不存在，可以创建

2.5.2 创建

radosgw-admin user create --uid="{user-name}" --display-name="{display-name}" --system

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
[root@node-10 ~]# radosgw-admin user create --uid="sync-user" --display-name="Sync User" --system
{ # 回显内容有删减
    "user_id": "sync-user",
    "display_name": "Sync User",
    "email": "",
    "suspended": 0,
    "max_buckets": 100,
    "auid": 0,
    "subusers": [],
    "keys": [
        {
            "user": "sync-user",
            "access_key": "WB55YP5G6WSB36PQLM2Z",
            "secret_key": "aXyw6Ck6MV85OZaC3bgwaMYB3pI7Dr4i9ogyBIti"
        }
    ],
    "swift_keys": [],
    "caps": [],
    "op_mask": "read, write, delete",
    "system": "true", # 系统级别用户
    "default_placement": "",
    "placement_tags": [],
    "bucket_quota": {
        "enabled": true,
        "check_on_raw": false,
        "max_size": -1,
        "max_size_kb": 0,
        "max_objects": 10000000
    },
    "type": "rgw"
}

2.5.3 验证

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
[root@node-10 ~]# radosgw-admin user info --uid=sync-user
{ # 回显内容有删减
    "user_id": "sync-user",
    "display_name": "Sync User",
    "email": "",
    "suspended": 0,
    "max_buckets": 100,
    "auid": 0,
    "subusers": [],
    "keys": [
        {
            "user": "sync-user",
            "access_key": "WB55YP5G6WSB36PQLM2Z",
            "secret_key": "aXyw6Ck6MV85OZaC3bgwaMYB3pI7Dr4i9ogyBIti"
        }
    ],
    "swift_keys": [],
    "caps": [],
    "op_mask": "read, write, delete",
    "system": "true", # 系统级别用户
    "default_placement": "",
    "placement_tags": [],
    "bucket_quota": {
        "enabled": true,
        "check_on_raw": false,
        "max_size": -1,
        "max_size_kb": 0,
        "max_objects": 10000000
    },
    "type": "rgw"
}

2.6 绑定域

将zone和zone group与realm绑定。

2.6.1 绑定前查看

1
2
3
4
5
6
7
[root@node-10 ~]# radosgw-admin realm get
{
    "id": "31a49490-d7f4-42c6-ad88-15493474a3d5",
    "name": "gz",
    "current_period": "e3f5f0c1-1ede-4ce5-ae07-d48367b4a28b",
    "epoch": 1
}

2.6.2 绑定realm

radosgw-admin zone modify --rgw-realm={realm-name} --rgw-zonegroup={zone-group-name} --rgw-zone={zone-name} --endpoints={url} --access-key={key} --secret={key} --master --default

说明：access-key和secret为2.5节创建的系统用户。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
[root@node-10 ~]# radosgw-admin zone modify --rgw-realm="gz" --rgw-zonegroup="bingo" --rgw-zone="bingo-A" --endpoints=http://10.16.205.10:80 --access-key=WB55YP5G6WSB36PQLM2Z  --secret=aXyw6Ck6MV85OZaC3bgwaMYB3pI7Dr4i9ogyBIti --master --default
{
    "id": "2dfd246d-bf16-4053-93e4-1f78570f775b",
    "name": "bingo-A",
    "domain_root": "default.rgw.meta:root",
    "control_pool": "default.rgw.control",
    "gc_pool": "default.rgw.log:gc",
    "lc_pool": "default.rgw.log:lc",
    "log_pool": "default.rgw.log",
    "intent_log_pool": "default.rgw.log:intent",
    "usage_log_pool": "default.rgw.log:usage",
    "reshard_pool": "default.rgw.log:reshard",
    "user_keys_pool": "default.rgw.meta:users.keys",
    "user_email_pool": "default.rgw.meta:users.email",
    "user_swift_pool": "default.rgw.meta:users.swift",
    "user_uid_pool": "default.rgw.meta:users.uid",
    "system_key": {
        "access_key": "WB55YP5G6WSB36PQLM2Z",
        "secret_key": "aXyw6Ck6MV85OZaC3bgwaMYB3pI7Dr4i9ogyBIti"
    },
    "placement_pools": [
        {
            "key": "default-placement",
            "val": {
                "index_pool": "default.rgw.buckets.index",
                "data_pool": "default.rgw.buckets.data",
                "data_extra_pool": "default.rgw.buckets.non-ec",
                "index_type": 0,
                "compression": ""
            }
        }
    ],
    "metadata_heap": "",
    "tier_config": [],
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5" # 与gz这个realm绑定了
}

2.6.3 验证

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
[root@node-10 ~]# radosgw-admin zonegroup get
{
    "id": "89129545-7900-46a3-be71-943a85bba582",
    "name": "bingo",
    "api_name": "default",
    "is_master": "true",
    "endpoints": [
        "http://10.16.205.10:80"
    ],
    "hostnames": [],
    "hostnames_s3website": [],
    "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b",
    "zones": [
        {
            "id": "2dfd246d-bf16-4053-93e4-1f78570f775b",
            "name": "bingo-A",
            "endpoints": [
                "http://10.16.205.10:80"
            ],
            "log_meta": "false",
            "log_data": "false",
            "bucket_index_max_shards": 0,
            "read_only": "false",
            "tier_type": "",
            "sync_from_all": "true",
            "sync_from": []
        }
    ],
    "placement_targets": [
        {
            "name": "default-placement",
            "tags": []
        }
    ],
    "default_placement": "default-placement",
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
}

2.7 应用变更

应用变更period，同一个zone group的其它zone会接收新的配置变更。

2.7.1 变更前查看

1
2
3
4
5
6
7
[root@node-10 ~]# radosgw-admin realm get
{
    "id": "31a49490-d7f4-42c6-ad88-15493474a3d5",
    "name": "gz",
    "current_period": "e3f5f0c1-1ede-4ce5-ae07-d48367b4a28b",
    "epoch": 1
}

2.7.2 变更

radosgw-admin period update --commit

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
[root@node-10 ~]# radosgw-admin period update --commit
{ # 回显内容有删减
    "id": "2a11b308-6430-47d2-8059-76894abfb74c",
    "epoch": 1,
    "predecessor_uuid": "e3f5f0c1-1ede-4ce5-ae07-d48367b4a28b",
    "sync_status": [],
    "period_map": {
        "id": "2a11b308-6430-47d2-8059-76894abfb74c",
        "zonegroups": [
            {
                "id": "89129545-7900-46a3-be71-943a85bba582",
                "name": "bingo",
                "api_name": "default",
                "is_master": "true",
                "endpoints": [
                    "http://10.16.205.10:80"
                ],
                "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b",
                "zones": [
                    {
                        "id": "2dfd246d-bf16-4053-93e4-1f78570f775b",
                        "name": "bingo-A",
                        "endpoints": [
                            "http://10.16.205.10:80"
                        ],
                        "log_meta": "false",
                        "log_data": "false",
                        "bucket_index_max_shards": 0,
                        "read_only": "false",
                    }
                ],
                "default_placement": "default-placement",
                "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
            }
        ],
    "master_zonegroup": "89129545-7900-46a3-be71-943a85bba582",
    "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b",
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5",
    "realm_name": "gz",
    "realm_epoch": 2 # epoch从1变为2
}

2.7.3 验证

1
2
3
4
5
6
7
[root@node-10 ~]# radosgw-admin realm get
{
    "id": "31a49490-d7f4-42c6-ad88-15493474a3d5",
    "name": "gz",
    "current_period": "2a11b308-6430-47d2-8059-76894abfb74c",
    "epoch": 2 # epoch从1变为2
}

2.8 重启服务

更新master zone主机上的ceph.conf配置文件，添加rgw_zone配置选项。

1
2
[client.radosgw]下添加配置:
rgw_zone=bingo-A

重启radosgw服务

systemctl restart ceph-radosgw@radosgw

1
[root@node-10 ~]# systemctl restart ceph-radosgw@radosgw

2.9 查看同步状态

radosgw-admin sync status ：查看同步状态

1
2
3
4
5
[root@node-10 ~]# radosgw-admin sync status
          realm 31a49490-d7f4-42c6-ad88-15493474a3d5 (gz)
      zonegroup 89129545-7900-46a3-be71-943a85bba582 (bingo)
           zone 2dfd246d-bf16-4053-93e4-1f78570f775b (bingo-A)
  metadata sync no sync (zone is master) # bingo-A为主站点

三、备站点配置

3.1 备站点环境查看

通常情况下，radosgw启动后会自动创建一个名为default的zone group，并且会在该zone group下自动创建一个名为default的zone。可以通过下面命令查看验证。

radosgw-admin zonegroup list ：查看所有的zone group

radosgw-admin zone list ：查看所有的zone

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
[root@ceph-single-cluster ~]# radosgw-admin zonegroup list
{
    "default_info": "bd5c6fa4-695f-4017-8bc1-fd2fe5ee045f",
    "zonegroups": [
        "default"
    ]
}

[root@ceph-single-cluster ~]# radosgw-admin zone list
{
    "default_info": "f01ddceb-92cb-4ffb-850f-099df6aecaab",
    "zones": [
        "default"
    ]
}

radosgw启动后会在集群中自动创建一些带有rgw名字的pool，本演示环境中bingo-B为全新集群，里面没存储任何数据。

1
2
3
4
5
[root@ceph-single-cluster ~]# ceph osd pool ls | grep rgw
.rgw.root
default.rgw.control
default.rgw.meta
default.rgw.log

假设使用新安装的集群进行多站点配置，尚未使用默认zone及其pool来存储数据，那么可以把默认zone和pool删除。如果已存在数据将会丢失并不可恢复。

删除默认zone

1
2
3
4
5
6
[root@ceph-single-cluster ~]# radosgw-admin zone delete --rgw-zone=default
[root@ceph-single-cluster ~]# radosgw-admin zone list
{
    "default_info": "",
    "zones": []
}

删除radosgw自动创建的默认pool（务必确认rgw尚未存数据）

1
2
3
4
5
6
7
8
9
10
[root@ceph-single-cluster ~]# ceph osd pool ls | grep -F default.rgw.
default.rgw.control
default.rgw.meta
default.rgw.log
[root@ceph-single-cluster ~]# rados rmpool default.rgw.control default.rgw.control --yes-i-really-really-mean-it
successfully deleted pool default.rgw.control
[root@ceph-single-cluster ~]# rados rmpool default.rgw.meta default.rgw.meta --yes-i-really-really-mean-it
successfully deleted pool default.rgw.meta
[root@ceph-single-cluster ~]# rados rmpool default.rgw.log default.rgw.log --yes-i-really-really-mean-it
successfully deleted pool default.rgw.log

注意：配置备站点前如果ceph.conf配置文件中有 rgw_admin_entry选项请先删掉此选项。

3.2 从主站点拉取域

radosgw-admin realm pull --url={url-to-master-zone-gateway} --access-key={access-key} --secret={secret}

说明：

  • access-key和secret为2.5节创建的系统用户。
1
2
3
4
5
6
7
8
9
[root@ceph-single-cluster ~]# radosgw-admin realm pull --url=http://10.16.205.10:80 --access-key=WB55YP5G6WSB36PQLM2Z  --secret=aXyw6Ck6MV85OZaC3bgwaMYB3pI7Dr4i9ogyBIti
2023-09-10 19:04:56.407005 7f1b46286f80  1 error read_lastest_epoch .rgw.root:periods.2a11b308-6430-47d2-8059-76894abfb74c.latest_epoch # 该错误信息可以忽略
2023-09-10 19:04:56.567897 7f1b46286f80  1 Set the period's master zonegroup 89129545-7900-46a3-be71-943a85bba582 as the default
{
    "id": "31a49490-d7f4-42c6-ad88-15493474a3d5",
    "name": "gz",
    "current_period": "2a11b308-6430-47d2-8059-76894abfb74c",
    "epoch": 2
}

设置gz为默认realm。

radosgw-admin realm default --rgw-realm={realm-name}

1
2
3
[root@ceph-single-cluster ~]# radosgw-admin realm default --rgw-realm=gz
[root@ceph-single-cluster ~]# radosgw-admin realm get-default
default realm: 31a49490-d7f4-42c6-ad88-15493474a3d5

3.3 从主站点拉取 period

radosgw-admin period pull --url={url-to-master-zone-gateway} --access-key={access-key} --secret={secret}

说明：access-key和secret为2.5节创建的系统用户。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
[root@ceph-single-cluster ~]# radosgw-admin period  pull --url=http://10.16.205.10:80 --access-key=WB55YP5G6WSB36PQLM2Z  --secret=aXyw6Ck6MV85OZaC3bgwaMYB3pI7Dr4i9ogyBIti
2023-09-10 19:07:24.203099 7f084e32ff80  1 found existing latest_epoch 1 >= given epoch 1, returning r=-17
{ # 回显内容有删减
    "id": "2a11b308-6430-47d2-8059-76894abfb74c",
    "epoch": 1,
    "predecessor_uuid": "e3f5f0c1-1ede-4ce5-ae07-d48367b4a28b",
    "sync_status": [],
    "period_map": {
        "id": "2a11b308-6430-47d2-8059-76894abfb74c",
        "zonegroups": [
            {
                "id": "89129545-7900-46a3-be71-943a85bba582",
                "name": "bingo",
                "api_name": "default",
                "is_master": "true",
                "endpoints": [
                    "http://10.16.205.10:80"
                ],
                "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b",
                "zones": [
                    {
                        "id": "2dfd246d-bf16-4053-93e4-1f78570f775b",
                        "name": "bingo-A",
                        "endpoints": [
                            "http://10.16.205.10:80"
                        ],
                        "log_meta": "false",
                        "log_data": "false",
                        "bucket_index_max_shards": 0,
                        "read_only": "false",
                    }
                ],
                "default_placement": "default-placement",
                "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
            }
        ],
    },
    "master_zonegroup": "89129545-7900-46a3-be71-943a85bba582",
    "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b",
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5",
    "realm_name": "gz",
    "realm_epoch": 2
}

3.4 创建备区域

1
2
3
4
radosgw-admin zone create --rgw-zonegroup={zone-group-name}\
                          --rgw-zone={zone-name} --endpoints={url}\
                           --access-key={system-key} --secret={secret}\
                           [--read-only]

说明：

  • –read-only：默认所有zone都以active-active模式运行；即客户端可能会将数据写入任何zone，zone会将数据复制到 zone group 中的所有其他 zone。如果 second zone 不接受写操作，请指定 --read-only 标志，以active-passive模式运行。
  • 本次演示环境会将bingo-B zone设置为read-only。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
[root@ceph-single-cluster ~]# radosgw-admin zone create --rgw-zonegroup=bingo --rgw-zone=bingo-B --endpoints=http://10.3.23.136:80 --access-key=WB55YP5G6WSB36PQLM2Z --secret=aXyw6Ck6MV85OZaC3bgwaMYB3pI7Dr4i9ogyBIti --read-only
2023-09-10 19:10:40.661862 7faea03c2f80  0 failed reading obj info from .rgw.root:zone_info.2dfd246d-bf16-4053-93e4-1f78570f775b: (2) No such file or directory # 该错误信息可以忽略
2023-09-10 19:10:40.661947 7faea03c2f80  0 WARNING: could not read zone params for zone id=2dfd246d-bf16-4053-93e4-1f78570f775b name=bingo-A # 该警告信息可以忽略
{
    "id": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
    "name": "bingo-B",
    "domain_root": "bingo-B.rgw.meta:root",
    "control_pool": "bingo-B.rgw.control",
    "gc_pool": "bingo-B.rgw.log:gc",
    "lc_pool": "bingo-B.rgw.log:lc",
    "log_pool": "bingo-B.rgw.log",
    "intent_log_pool": "bingo-B.rgw.log:intent",
    "usage_log_pool": "bingo-B.rgw.log:usage",
    "reshard_pool": "bingo-B.rgw.log:reshard",
    "user_keys_pool": "bingo-B.rgw.meta:users.keys",
    "user_email_pool": "bingo-B.rgw.meta:users.email",
    "user_swift_pool": "bingo-B.rgw.meta:users.swift",
    "user_uid_pool": "bingo-B.rgw.meta:users.uid",
    "system_key": {
        "access_key": "WB55YP5G6WSB36PQLM2Z",
        "secret_key": "aXyw6Ck6MV85OZaC3bgwaMYB3pI7Dr4i9ogyBIti"
    },
    "placement_pools": [
        {
            "key": "default-placement",
            "val": {
                "index_pool": "bingo-B.rgw.buckets.index",
                "data_pool": "bingo-B.rgw.buckets.data",
                "data_extra_pool": "bingo-B.rgw.buckets.non-ec",
                "index_type": 0,
                "compression": ""
            }
        }
    ],
    "metadata_heap": "",
    "tier_config": [],
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
}

验证

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
[root@ceph-single-cluster ~]# radosgw-admin zonegroup get
{ # 回显内容有删减
    "id": "89129545-7900-46a3-be71-943a85bba582",
    "name": "bingo",
    "api_name": "default",
    "is_master": "true",
    "endpoints": [
        "http://10.16.205.10:80"
    ],
    "hostnames": [],
    "hostnames_s3website": [],
    "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b",
    "zones": [
        {
            "id": "2dfd246d-bf16-4053-93e4-1f78570f775b",
            "name": "bingo-A",
            "endpoints": [
                "http://10.16.205.10:80"
            ],
            "log_meta": "false",
            "log_data": "true",
            "bucket_index_max_shards": 0,
            "read_only": "false",
            "tier_type": "",
            "sync_from_all": "true",
            "sync_from": []
        },
        {
            "id": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
            "name": "bingo-B",
            "endpoints": [
                "http://10.3.23.136:80" # url为bingo-B的radosgw地址
            ],
            "log_meta": "false",
            "log_data": "true",
            "bucket_index_max_shards": 0,
            "read_only": "true", # 只读
        }
    ],
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
}

3.5 应用变更

应用变更period，其他zone会接收新的配置。

radosgw-admin period update --commit

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
[root@ceph-single-cluster ~]# radosgw-admin period update --commit
2023-09-10 19:13:52.621606 7fb130a12f80  1 Cannot find zone id=3b06b85f-8266-4e44-91ee-e0b334f619c5 (name=bingo-B), switching to local zonegroup configuration # 该信息可忽略
Sending period to new master zone 2dfd246d-bf16-4053-93e4-1f78570f775b
{ # 回显内容有删减
    "id": "2a11b308-6430-47d2-8059-76894abfb74c",
    "epoch": 2,
    "predecessor_uuid": "e3f5f0c1-1ede-4ce5-ae07-d48367b4a28b",
    "sync_status": [],
    "period_map": {
        "id": "2a11b308-6430-47d2-8059-76894abfb74c",
        "zonegroups": [
            {
                "id": "89129545-7900-46a3-be71-943a85bba582",
                "name": "bingo",
                "api_name": "default",
                "is_master": "true",
                "endpoints": [
                    "http://10.16.205.10:80"
                ],
                "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b",
                "zones": [
                    {
                        "id": "2dfd246d-bf16-4053-93e4-1f78570f775b",
                        "name": "bingo-A",
                        "endpoints": [
                            "http://10.16.205.10:80"
                        ],
                        "log_meta": "false",
                        "log_data": "true",
                        "bucket_index_max_shards": 0,
                        "read_only": "false",
                    },
                    {
                        "id": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
                        "name": "bingo-B",
                        "endpoints": [
                            "http://10.3.23.136:80"
                        ],
                        "log_meta": "false",
                        "log_data": "true",
                        "bucket_index_max_shards": 0,
                        "read_only": "true",
                    }
                ],
                "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
            }
        ],
    },
    "master_zonegroup": "89129545-7900-46a3-be71-943a85bba582",
    "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b",
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5",
    "realm_name": "gz",
    "realm_epoch": 2
}

3.6 重启服务

更新备站点主机上的ceph.conf配置文件，添加rgw_zone配置选项。

1
2
[client.radosgw]下添加配置:
rgw_zone=bingo-B

重启radosgw服务

systemctl restart ceph-radosgw@radosgw

1
[root@ceph-single-cluster ~]# systemctl restart ceph-radosgw@radosgw

3.7 验证同步

radosgw-admin sync status：查看同步状态

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
[root@ceph-single-cluster ~]# radosgw-admin sync status
          realm 31a49490-d7f4-42c6-ad88-15493474a3d5 (gz)
      zonegroup 89129545-7900-46a3-be71-943a85bba582 (bingo)
           zone 3b06b85f-8266-4e44-91ee-e0b334f619c5 (bingo-B)
  metadata sync syncing
                full sync: 3/64 shards
                full sync: 2 entries to sync
                incremental sync: 61/64 shards
                metadata is behind on 3 shards
                behind shards: [28,44,61]
      data sync source: 2dfd246d-bf16-4053-93e4-1f78570f775b (bingo-A)
                        syncing
                        full sync: 16/128 shards
                        full sync: 16 buckets to sync
                        incremental sync: 112/128 shards
                        data is behind on 16 shards
                        behind shards: [50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65] # 数据同步中
# 数据同步时间与数据量大小有关，可以隔一段时间再查看同步是否完成
[root@ceph-single-cluster ~]# radosgw-admin sync status
          realm 31a49490-d7f4-42c6-ad88-15493474a3d5 (gz)
      zonegroup 89129545-7900-46a3-be71-943a85bba582 (bingo)
           zone 3b06b85f-8266-4e44-91ee-e0b334f619c5 (bingo-B)
  metadata sync syncing # bingo-B为备站点
                full sync: 0/64 shards
                incremental sync: 64/64 shards
                metadata is caught up with master
      data sync source: 2dfd246d-bf16-4053-93e4-1f78570f775b (bingo-A)
                        syncing
                        full sync: 0/128 shards
                        incremental sync: 128/128 shards
                        data is caught up with source # 数据同步完成

查看pool中是否有从bingo-A master zone同步过来的数据。

1
2
3
4
5
6
7
8
9
10
11
12
13
[root@ceph-single-cluster ~]# ceph df
GLOBAL:
    SIZE       AVAIL      RAW USED     %RAW USED
    240GiB     239GiB       502MiB          0.20
POOLS:
    NAME                          ID      USED        %USED     MAX AVAIL     OBJECTS
    .rgw.root                     96      5.20KiB         0       75.8GiB          19
    bingo-B.rgw.control           100          0B         0       75.8GiB           8
    bingo-B.rgw.meta              101     1.12KiB         0       75.8GiB           7
    bingo-B.rgw.log               102     7.87KiB         0       75.8GiB         565
    default.rgw.meta              103          0B         0       75.8GiB           0
    bingo-B.rgw.buckets.index     104          0B         0       75.8GiB          16
    bingo-B.rgw.buckets.data      105     15.3MiB      0.02       75.8GiB           5 # 数据通过过来了

四、故障切换和灾难恢复

4.1 故障切换

模拟bingo-A master zone故障，切换到bingo-B secondary zone。

4.1.1 模拟主站点故障

可将bingo-A的radosgw服务停止来模拟发生了故障。

1
[root@node-10 ~]# systemctl stop ceph-radosgw@radosgw

4.1.2 切换到备站点

在bingo-B上查看同步状态

1
2
3
4
5
6
7
8
9
10
11
[root@ceph-single-cluster ~]# radosgw-admin sync status
          realm 31a49490-d7f4-42c6-ad88-15493474a3d5 (gz)
      zonegroup 89129545-7900-46a3-be71-943a85bba582 (bingo)
           zone 3b06b85f-8266-4e44-91ee-e0b334f619c5 (bingo-B)
2023-09-10 19:19:25.833927 7f02e814ff80  0 meta sync: ERROR: failed to fetch mdlog info
  metadata sync syncing # 可以发现同步异常
                full sync: 0/64 shards
                failed to fetch local sync status: (5) Input/output error
2023-09-10 19:19:25.835667 7f02e814ff80  0 data sync: ERROR: failed to fetch datalog info
      data sync source: 2dfd246d-bf16-4053-93e4-1f78570f775b (bingo-A)
                        failed to retrieve sync info: (5) Input/output error

将bingo-B secondary zone设置为master和default zone。

radosgw-admin zone modify --rgw-zone={zone-name} --master --default [ --read-only=false ]

说明：

  • 由于bingo-Bzone为read-only，现在设置其为master zone需要将read-only取消，客户端才能写数据。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
[root@ceph-single-cluster ~]# radosgw-admin zone modify --rgw-zone=bingo-B --master --default --read-only=false
2023-09-10 19:20:21.908757 7f746122ff80  0 NOTICE: overriding master zone: 2dfd246d-bf16-4053-93e4-1f78570f775b
2023-09-10 19:20:21.909132 7f746122ff80  0 failed reading obj info from .rgw.root:zone_info.2dfd246d-bf16-4053-93e4-1f78570f775b: (2) No such file or directory # 该错误信息可以忽略
2023-09-10 19:20:21.909158 7f746122ff80  0 WARNING: could not read zone params for zone id=2dfd246d-bf16-4053-93e4-1f78570f775b name=bingo-A # 该警告信息可以忽略
{
    "id": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
    "name": "bingo-B",
    "domain_root": "bingo-B.rgw.meta:root",
    "control_pool": "bingo-B.rgw.control",
    "gc_pool": "bingo-B.rgw.log:gc",
    "lc_pool": "bingo-B.rgw.log:lc",
    "log_pool": "bingo-B.rgw.log",
    "intent_log_pool": "bingo-B.rgw.log:intent",
    "usage_log_pool": "bingo-B.rgw.log:usage",
    "reshard_pool": "bingo-B.rgw.log:reshard",
    "user_keys_pool": "bingo-B.rgw.meta:users.keys",
    "user_email_pool": "bingo-B.rgw.meta:users.email",
    "user_swift_pool": "bingo-B.rgw.meta:users.swift",
    "user_uid_pool": "bingo-B.rgw.meta:users.uid",
    "system_key": {
        "access_key": "WB55YP5G6WSB36PQLM2Z",
        "secret_key": "aXyw6Ck6MV85OZaC3bgwaMYB3pI7Dr4i9ogyBIti"
    },
    "placement_pools": [
        {
            "key": "default-placement",
            "val": {
                "index_pool": "bingo-B.rgw.buckets.index",
                "data_pool": "bingo-B.rgw.buckets.data",
                "data_extra_pool": "bingo-B.rgw.buckets.non-ec",
                "index_type": 0,
                "compression": ""
            }
        }
    ],
    "metadata_heap": "",
    "tier_config": [],
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
}

验证bingo-B是否为master zone

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
[root@ceph-single-cluster ~]# radosgw-admin zonegroup get
{ # 回显内容有删减
    "id": "89129545-7900-46a3-be71-943a85bba582",
    "name": "bingo",
    "api_name": "default",
    "is_master": "true",
    "endpoints": [
        "http://10.16.205.10:80"
    ],
    "master_zone": "3b06b85f-8266-4e44-91ee-e0b334f619c5", # bingo-B为master zone
    "zones": [
        {
            "id": "2dfd246d-bf16-4053-93e4-1f78570f775b",
            "name": "bingo-A",
            "endpoints": [
                "http://10.16.205.10:80"
            ],
            "log_meta": "false",
            "log_data": "true",
            "bucket_index_max_shards": 0,
            "read_only": "false",
        },
        {
            "id": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
            "name": "bingo-B",
            "endpoints": [
                "http://10.3.23.136:80"
            ],
            "log_meta": "false",
            "log_data": "true",
            "bucket_index_max_shards": 0,
            "read_only": "false", # 客户端可以写入数据
        }
    ],
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
}

应用变更。

radosgw-admin period update --commit

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
[root@ceph-single-cluster ~]# radosgw-admin period update --commit
{ # 回显内容有删减
    "id": "44ae139b-9ebf-47e3-a387-c65bafefdbd5",
    "epoch": 1,
    "predecessor_uuid": "2a11b308-6430-47d2-8059-76894abfb74c",
    "sync_status": [
        ""
    ],
    "period_map": {
        "id": "44ae139b-9ebf-47e3-a387-c65bafefdbd5",
        "zonegroups": [
            {
                "id": "89129545-7900-46a3-be71-943a85bba582",
                "name": "bingo",
                "api_name": "default",
                "is_master": "true",
                "endpoints": [
                    "http://10.16.205.10:80"
                ],
                "master_zone": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
                "zones": [
                    {
                        "id": "2dfd246d-bf16-4053-93e4-1f78570f775b",
                        "name": "bingo-A",
                        "endpoints": [
                            "http://10.16.205.10:80"
                        ],
                        "log_meta": "false",
                        "log_data": "true",
                        "bucket_index_max_shards": 0,
                        "read_only": "false",
                    },
                    {
                        "id": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
                        "name": "bingo-B",
                        "endpoints": [
                            "http://10.3.23.136:80"
                        ],
                        "log_meta": "false",
                        "log_data": "true",
                        "bucket_index_max_shards": 0,
                        "read_only": "false",
                    }
                ],
                "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
            }
        ],
    },
    "master_zonegroup": "89129545-7900-46a3-be71-943a85bba582",
    "master_zone": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5",
    "realm_name": "gz",
    "realm_epoch": 3
}

在bingo-B上重新启动radosgw服务。

1
[root@ceph-single-cluster ~]# systemctl restart ceph-radosgw@radosgw

查看同步状态

1
2
3
4
5
6
7
8
[root@ceph-single-cluster ~]# radosgw-admin sync status
          realm 31a49490-d7f4-42c6-ad88-15493474a3d5 (gz)
      zonegroup 89129545-7900-46a3-be71-943a85bba582 (bingo)
           zone 3b06b85f-8266-4e44-91ee-e0b334f619c5 (bingo-B)
  metadata sync no sync (zone is master) # bingo-B为主站点了
2023-09-10 19:25:56.038789 7fefb3febf80  0 data sync: ERROR: failed to fetch datalog info # bingo-A故障了
      data sync source: 2dfd246d-bf16-4053-93e4-1f78570f775b (bingo-A)
                        failed to retrieve sync info: (5) Input/output error

4.2 灾难恢复

假设bingo-A恢复正常了，现在重新将master zone切换到bingo-A。

4.2.1 主站点恢复

将之前模拟故障的bingo-A的radosgw服务重新启动。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
[root@node-10 ~]# systemctl status ceph-radosgw@radosgw
○ ceph-radosgw@radosgw.service - Ceph rados gateway
     Loaded: loaded (/usr/lib/systemd/system/ceph-radosgw@.service; enabled; vendor preset: disabled)
     Active: inactive (dead) since 2023-09-10 19:27:01 CST; 11min ago
    Process: 204125 ExecStart=/usr/bin/radosgw -f --cluster ${CLUSTER} --name client.radosgw --setuser ceph --setgroup ceph (code=exited, status=0/SUCCESS)
   Main PID: 204125 (code=exited, status=0/SUCCESS)
[root@node-10 ~]# systemctl start ceph-radosgw@radosgw
[root@node-10 ~]# systemctl status ceph-radosgw@radosgw
● ceph-radosgw@radosgw.service - Ceph rados gateway
     Loaded: loaded (/usr/lib/systemd/system/ceph-radosgw@.service; enabled; vendor preset: disabled)
     Active: active (running) since Sun 2023-09-10 19:27:08 CST; 30s ago
   Main PID: 267097 (radosgw)
      Tasks: 593
     Memory: 51.9M
     CGroup: /system.slice/system-ceph\x2dradosgw.slice/ceph-radosgw@radosgw.service
             └─ 267097 /usr/bin/radosgw -f --cluster ceph --name client.radosgw --setuser ceph --setgroup ceph

查看当前bingo-A同步状态

1
2
3
4
5
6
7
8
9
10
11
12
13
[root@node-10 ~]# radosgw-admin sync status
          realm 31a49490-d7f4-42c6-ad88-15493474a3d5 (gz)
      zonegroup 89129545-7900-46a3-be71-943a85bba582 (bingo)
           zone 2dfd246d-bf16-4053-93e4-1f78570f775b (bingo-A)
  metadata sync syncing # bingo-A现在为备站点
                full sync: 0/64 shards
                incremental sync: 64/64 shards
                metadata is caught up with master
      data sync source: 3b06b85f-8266-4e44-91ee-e0b334f619c5 (bingo-B)
                        syncing
                        full sync: 0/128 shards
                        incremental sync: 128/128 shards
                        data is caught up with source

在bingo-A上拉取realm

radosgw-admin realm pull --url={url-to-master-zone-gateway} --access-key={access-key} --secret={secret}

说明：

  • access-key和secret为2.5节创建的系统用户。
1
2
3
4
5
6
7
8
[root@node-10 ~]# radosgw-admin realm pull --url=http://10.3.23.136:80 --access-key=WB55YP5G6WSB36PQLM2Z --secret=aXyw6Ck6MV85OZaC3bgwaMYB3pI7Dr4i9ogyBIti
2023-09-10 19:31:52.430554 7fe3e6f4e080  1 found existing latest_epoch 1 >= given epoch 1, returning r=-17
{
    "id": "31a49490-d7f4-42c6-ad88-15493474a3d5",
    "name": "gz",
    "current_period": "44ae139b-9ebf-47e3-a387-c65bafefdbd5",
    "epoch": 3
}

在bingo-A的radosgw上将bingo-A重新设为master和default zone。

radosgw-admin zone modify --rgw-zone={zone-name} --master --default

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
[root@node-10 ~]# radosgw-admin zone modify --rgw-zone=bingo-A --master --default
2023-09-10 19:32:19.697172 7fcb30974080  0 NOTICE: overriding master zone: 3b06b85f-8266-4e44-91ee-e0b334f619c5
2023-09-10 19:32:19.698813 7fcb30974080  0 failed reading obj info from .rgw.root:zone_info.3b06b85f-8266-4e44-91ee-e0b334f619c5: (2) No such file or directory # 该错误信息可忽略
2023-09-10 19:32:19.698831 7fcb30974080  0 WARNING: could not read zone params for zone id=3b06b85f-8266-4e44-91ee-e0b334f619c5 name=bingo-B # 该警告信息可忽略
{
    "id": "2dfd246d-bf16-4053-93e4-1f78570f775b",
    "name": "bingo-A",
    "domain_root": "default.rgw.meta:root",
    "control_pool": "default.rgw.control",
    "gc_pool": "default.rgw.log:gc",
    "lc_pool": "default.rgw.log:lc",
    "log_pool": "default.rgw.log",
    "intent_log_pool": "default.rgw.log:intent",
    "usage_log_pool": "default.rgw.log:usage",
    "reshard_pool": "default.rgw.log:reshard",
    "user_keys_pool": "default.rgw.meta:users.keys",
    "user_email_pool": "default.rgw.meta:users.email",
    "user_swift_pool": "default.rgw.meta:users.swift",
    "user_uid_pool": "default.rgw.meta:users.uid",
    "system_key": {
        "access_key": "WB55YP5G6WSB36PQLM2Z",
        "secret_key": "aXyw6Ck6MV85OZaC3bgwaMYB3pI7Dr4i9ogyBIti"
    },
    "placement_pools": [
        {
            "key": "default-placement",
            "val": {
                "index_pool": "default.rgw.buckets.index",
                "data_pool": "default.rgw.buckets.data",
                "data_extra_pool": "default.rgw.buckets.non-ec",
                "index_type": 0,
                "compression": ""
            }
        }
    ],
    "metadata_heap": "",
    "tier_config": [],
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
}

在bingo-A上应用更新。

radosgw-admin period update --commit

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
[root@node-10 ~]# radosgw-admin period update --commit
{ # 回显内容有删减
    "id": "d45e8a76-c27f-4ecc-b381-7504feafbddb",
    "epoch": 1,
    "predecessor_uuid": "44ae139b-9ebf-47e3-a387-c65bafefdbd5",
    "sync_status": [
        ""
    ],
    "period_map": {
        "id": "d45e8a76-c27f-4ecc-b381-7504feafbddb",
        "zonegroups": [
            {
                "id": "89129545-7900-46a3-be71-943a85bba582",
                "name": "bingo",
                "api_name": "default",
                "is_master": "true",
                "endpoints": [
                    "http://10.16.205.10:80"
                ],
                "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b", # bingo-A为master zone
                "zones": [
                    {
                        "id": "2dfd246d-bf16-4053-93e4-1f78570f775b",
                        "name": "bingo-A",
                        "endpoints": [
                            "http://10.16.205.10:80"
                        ],
                        "log_meta": "false",
                        "log_data": "true",
                        "bucket_index_max_shards": 0,
                        "read_only": "false",
                    },
                    {
                        "id": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
                        "name": "bingo-B",
                        "endpoints": [
                            "http://10.3.23.136:80"
                        ],
                        "log_meta": "false",
                        "log_data": "true",
                        "bucket_index_max_shards": 0,
                        "read_only": "false",
                    }
                ],
                "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
            }
        ],
    },
    "master_zonegroup": "89129545-7900-46a3-be71-943a85bba582",
    "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b",
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5",
    "realm_name": "gz",
    "realm_epoch": 4
}

在bingo-A上重启服务

1
systemctl restart ceph-radosgw@radosgw

查看bingo-A同步状态

1
2
3
4
5
6
7
8
9
10
11
[root@node-10 ~]# systemctl restart ceph-radosgw@radosgw
[root@node-10 ~]# radosgw-admin sync status
          realm 31a49490-d7f4-42c6-ad88-15493474a3d5 (gz)
      zonegroup 89129545-7900-46a3-be71-943a85bba582 (bingo)
           zone 2dfd246d-bf16-4053-93e4-1f78570f775b (bingo-A)
  metadata sync no sync (zone is master) # bingo-A变为主站点
      data sync source: 3b06b85f-8266-4e44-91ee-e0b334f619c5 (bingo-B)
                        syncing
                        full sync: 0/128 shards
                        incremental sync: 128/128 shards
                        data is caught up with source

4.2.2 设置备站点

在bingo-B上查看同步状态

1
2
3
4
5
6
7
8
9
10
[root@ceph-single-cluster ~]# radosgw-admin sync status
          realm 31a49490-d7f4-42c6-ad88-15493474a3d5 (gz)
      zonegroup 89129545-7900-46a3-be71-943a85bba582 (bingo)
           zone 3b06b85f-8266-4e44-91ee-e0b334f619c5 (bingo-B)
  metadata sync no sync (zone is master) # 可以看到bingo-B现在还是master zone，需要拉取最新的realm
      data sync source: 2dfd246d-bf16-4053-93e4-1f78570f775b (bingo-A)
                        syncing
                        full sync: 0/128 shards
                        incremental sync: 128/128 shards
                        data is caught up with source

在bingo-B上拉取realm

radosgw-admin realm pull --url={url-to-master-zone-gateway} --access-key={access-key} --secret={secret}

说明：

  • access-key和secret为2.5节创建的系统用户。
1
2
3
4
5
6
7
8
[root@ceph-single-cluster ~]# radosgw-admin realm pull --url=http://10.16.205.10:80 --access-key=WB55YP5G6WSB36PQLM2Z --secret=aXyw6Ck6MV85OZaC3bgwaMYB3pI7Dr4i9ogyBIti
2023-09-10 19:41:25.065698 7f21fb0d7f80  1 found existing latest_epoch 1 >= given epoch 1, returning r=-17
{
    "id": "31a49490-d7f4-42c6-ad88-15493474a3d5",
    "name": "gz",
    "current_period": "d45e8a76-c27f-4ecc-b381-7504feafbddb",
    "epoch": 4
}

查看

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
[root@ceph-single-cluster ~]# radosgw-admin zonegroup get
{ # 回显内容有删减
    "id": "89129545-7900-46a3-be71-943a85bba582",
    "name": "bingo",
    "api_name": "default",
    "is_master": "true",
    "endpoints": [
        "http://10.16.205.10:80"
    ],
    "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b", # bingo-A为master zone
    "zones": [
        {
            "id": "2dfd246d-bf16-4053-93e4-1f78570f775b",
            "name": "bingo-A",
            "endpoints": [
                "http://10.16.205.10:80"
            ],
            "log_meta": "false",
            "log_data": "true",
            "bucket_index_max_shards": 0,
            "read_only": "false",
        },
        {
            "id": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
            "name": "bingo-B",
            "endpoints": [
                "http://10.3.23.136:80"
            ],
            "log_meta": "false",
            "log_data": "true",
            "bucket_index_max_shards": 0,
            "read_only": "false", # bingo-B现在还不是只读
        }
    ],
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
}

我们之前规划中bingo-B为read-only，所以现在需要将bingo-B状态设置为read-only。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
[root@ceph-single-cluster ~]# radosgw-admin zone modify --rgw-zone=bingo-B --read-only
2023-09-10 19:42:50.451069 7f3042436f80  0 failed reading obj info from .rgw.root:zone_info.2dfd246d-bf16-4053-93e4-1f78570f775b: (2) No such file or directory # 该错误信息可忽略
2023-09-10 19:42:50.451088 7f3042436f80  0 WARNING: could not read zone params for zone id=2dfd246d-bf16-4053-93e4-1f78570f775b name=bingo-A # 该警告信息可忽略
{
    "id": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
    "name": "bingo-B",
    "domain_root": "bingo-B.rgw.meta:root",
    "control_pool": "bingo-B.rgw.control",
    "gc_pool": "bingo-B.rgw.log:gc",
    "lc_pool": "bingo-B.rgw.log:lc",
    "log_pool": "bingo-B.rgw.log",
    "intent_log_pool": "bingo-B.rgw.log:intent",
    "usage_log_pool": "bingo-B.rgw.log:usage",
    "reshard_pool": "bingo-B.rgw.log:reshard",
    "user_keys_pool": "bingo-B.rgw.meta:users.keys",
    "user_email_pool": "bingo-B.rgw.meta:users.email",
    "user_swift_pool": "bingo-B.rgw.meta:users.swift",
    "user_uid_pool": "bingo-B.rgw.meta:users.uid",
    "system_key": {
        "access_key": "WB55YP5G6WSB36PQLM2Z",
        "secret_key": "aXyw6Ck6MV85OZaC3bgwaMYB3pI7Dr4i9ogyBIti"
    },
    "placement_pools": [
        {
            "key": "default-placement",
            "val": {
                "index_pool": "bingo-B.rgw.buckets.index",
                "data_pool": "bingo-B.rgw.buckets.data",
                "data_extra_pool": "bingo-B.rgw.buckets.non-ec",
                "index_type": 0,
                "compression": ""
            }
        }
    ],
    "metadata_heap": "",
    "tier_config": [],
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
}

验证bingo-B是否为read-only

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
[root@ceph-single-cluster ~]# radosgw-admin zonegroup get
{ # 回显内容有删减
    "id": "89129545-7900-46a3-be71-943a85bba582",
    "name": "bingo",
    "api_name": "default",
    "is_master": "true",
    "endpoints": [
        "http://10.16.205.10:80"
    ],
    "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b",
    "zones": [
        {
            "id": "2dfd246d-bf16-4053-93e4-1f78570f775b",
            "name": "bingo-A",
            "endpoints": [
                "http://10.16.205.10:80"
            ],
            "log_meta": "false",
            "log_data": "true",
            "bucket_index_max_shards": 0,
            "read_only": "false",
        },
        {
            "id": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
            "name": "bingo-B",
            "endpoints": [
                "http://10.3.23.136:80"
            ],
            "log_meta": "false",
            "log_data": "true",
            "bucket_index_max_shards": 0,
            "read_only": "true", # 只读
        }
    ],
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
}

在bingo-B上应用变更

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
[root@ceph-single-cluster ~]# radosgw-admin period update --commit
Sending period to new master zone 2dfd246d-bf16-4053-93e4-1f78570f775b
{ # 回显内容有删减
    "id": "d45e8a76-c27f-4ecc-b381-7504feafbddb",
    "epoch": 2,
    "predecessor_uuid": "44ae139b-9ebf-47e3-a387-c65bafefdbd5",
    "sync_status": [
        ""
    ],
    "period_map": {
        "id": "d45e8a76-c27f-4ecc-b381-7504feafbddb",
        "zonegroups": [
            {
                "id": "89129545-7900-46a3-be71-943a85bba582",
                "name": "bingo",
                "api_name": "default",
                "is_master": "true",
                "endpoints": [
                    "http://10.16.205.10:80"
                ],
                "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b",
                "zones": [
                    {
                        "id": "2dfd246d-bf16-4053-93e4-1f78570f775b",
                        "name": "bingo-A",
                        "endpoints": [
                            "http://10.16.205.10:80"
                        ],
                        "log_meta": "false",
                        "log_data": "true",
                        "bucket_index_max_shards": 0,
                        "read_only": "false",
                    },
                    {
                        "id": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
                        "name": "bingo-B",
                        "endpoints": [
                            "http://10.3.23.136:80"
                        ],
                        "log_meta": "false",
                        "log_data": "true",
                        "bucket_index_max_shards": 0,
                        "read_only": "true",
                    }
                ],
                "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
            }
        ],
    },
    "master_zonegroup": "89129545-7900-46a3-be71-943a85bba582",
    "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b",
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5",
    "realm_name": "gz",
    "realm_epoch": 4
}

在bingo-B上重启服务

systemctl restart ceph-radosgw@radosgw

1
[root@ceph-single-cluster ~]# systemctl restart ceph-radosgw@radosgw

查看bingo-B同步状态

1
2
3
4
5
6
7
8
9
10
11
12
13
[root@ceph-single-cluster ~]# radosgw-admin sync status
          realm 31a49490-d7f4-42c6-ad88-15493474a3d5 (gz)
      zonegroup 89129545-7900-46a3-be71-943a85bba582 (bingo)
           zone 3b06b85f-8266-4e44-91ee-e0b334f619c5 (bingo-B)
  metadata sync syncing # bingo-B变为备站点
                full sync: 0/64 shards
                incremental sync: 64/64 shards
                metadata is caught up with master
      data sync source: 2dfd246d-bf16-4053-93e4-1f78570f775b (bingo-A)
                        syncing
                        full sync: 0/128 shards
                        incremental sync: 128/128 shards
                        data is caught up with source

五、解除主备站点同步

当bingo-A和bingo-B两个zone不需要同步时，解除之间的同步关系。

5.1 主站点移除备站点

5.1.1 移除备站点

移除前查看同步状态

1
2
3
4
5
6
7
8
9
10
[root@node-10 ~]# radosgw-admin sync status
          realm 31a49490-d7f4-42c6-ad88-15493474a3d5 (gz)
      zonegroup 89129545-7900-46a3-be71-943a85bba582 (bingo)
           zone 2dfd246d-bf16-4053-93e4-1f78570f775b (bingo-A)
  metadata sync no sync (zone is master)
      data sync source: 3b06b85f-8266-4e44-91ee-e0b334f619c5 (bingo-B)
                        syncing
                        full sync: 0/128 shards
                        incremental sync: 128/128 shards
                        data is caught up with source

移除bingo-B

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
[root@node-10 ~]# radosgw-admin zonegroup remove --rgw-zonegroup=bingo --rgw-zone=bingo-B
{ # 回显内容有删减
    "id": "89129545-7900-46a3-be71-943a85bba582",
    "name": "bingo",
    "api_name": "default",
    "is_master": "true",
    "endpoints": [
        "http://10.16.205.10:80"
    ],
    "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b",
    "zones": [
        {
            "id": "2dfd246d-bf16-4053-93e4-1f78570f775b",
            "name": "bingo-A",
            "endpoints": [
                "http://10.16.205.10:80"
            ],
            "log_meta": "false",
            "log_data": "false",
            "bucket_index_max_shards": 0,
            "read_only": "false",
        }
    ],
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
}

5.1.2 应用变更

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
[root@node-10 ~]# radosgw-admin period update --commit
{ # 回显内容有删减
    "id": "d45e8a76-c27f-4ecc-b381-7504feafbddb",
    "epoch": 3,
    "predecessor_uuid": "44ae139b-9ebf-47e3-a387-c65bafefdbd5",
    "sync_status": [
        ""
    ],
    "period_map": {
        "id": "d45e8a76-c27f-4ecc-b381-7504feafbddb",
        "zonegroups": [
            {
                "id": "89129545-7900-46a3-be71-943a85bba582",
                "name": "bingo",
                "api_name": "default",
                "is_master": "true",
                "endpoints": [
                    "http://10.16.205.10:80"
                ],
                "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b",
                "zones": [
                    {
                        "id": "2dfd246d-bf16-4053-93e4-1f78570f775b",
                        "name": "bingo-A",
                        "endpoints": [
                            "http://10.16.205.10:80"
                        ],
                        "log_meta": "false",
                        "log_data": "false",
                        "bucket_index_max_shards": 0,
                        "read_only": "false",
                    }
                ],
                "placement_targets": [
                    {
                        "name": "default-placement",
                        "tags": []
                    }
                ],
                "default_placement": "default-placement",
                "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
            }
        ],
    },
    "master_zonegroup": "89129545-7900-46a3-be71-943a85bba582",
    "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b",
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5",
    "realm_name": "gz",
    "realm_epoch": 4
}

5.1.3 重启服务

systemctl restart ceph-radosgw@radosgw

1
[root@node-10 ~]# systemctl restart ceph-radosgw@radosgw

5.1.4 验证

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
[root@node-10 ~]# systemctl restart ceph-radosgw@radosgw
[root@node-10 ~]# radosgw-admin sync status
          realm 31a49490-d7f4-42c6-ad88-15493474a3d5 (gz)
      zonegroup 89129545-7900-46a3-be71-943a85bba582 (bingo)
           zone 2dfd246d-bf16-4053-93e4-1f78570f775b (bingo-A) # bingo-B同步关系已经移除
  metadata sync no sync (zone is master)
[root@node-10 ~]# radosgw-admin zonegroup get
{ # 回显内容有删减
    "id": "89129545-7900-46a3-be71-943a85bba582",
    "name": "bingo",
    "api_name": "default",
    "is_master": "true",
    "endpoints": [
        "http://10.16.205.10:80"
    ],
    "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b",
    "zones": [
        {
            "id": "2dfd246d-bf16-4053-93e4-1f78570f775b",
            "name": "bingo-A",
            "endpoints": [
                "http://10.16.205.10:80"
            ],
            "log_meta": "false",
            "log_data": "false",
            "bucket_index_max_shards": 0,
            "read_only": "false",
        }
    ],
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
}

5.2 备站点移除主站点

5.2.1 移除主站点

移除前查看同步状态

1
2
3
4
5
6
7
8
9
10
11
12
13
[root@ceph-single-cluster ~]# radosgw-admin sync status
          realm 31a49490-d7f4-42c6-ad88-15493474a3d5 (gz)
      zonegroup 89129545-7900-46a3-be71-943a85bba582 (bingo)
           zone 3b06b85f-8266-4e44-91ee-e0b334f619c5 (bingo-B)
  metadata sync syncing # 在主站点移除备站点后，bingo-B没有机会更新同步信息
                full sync: 0/64 shards
                incremental sync: 64/64 shards
                metadata is caught up with master
      data sync source: 2dfd246d-bf16-4053-93e4-1f78570f775b (bingo-A)
                        syncing
                        full sync: 0/128 shards
                        incremental sync: 128/128 shards
                        data is caught up with source

移除bingo-A

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
[root@ceph-single-cluster ~]# radosgw-admin zonegroup remove --rgw-zonegroup=bingo --rgw-zone=bingo-A
{ # 回显内容有删减
    "id": "89129545-7900-46a3-be71-943a85bba582",
    "name": "bingo",
    "api_name": "default",
    "is_master": "true",
    "endpoints": [
        "http://10.16.205.10:80" # zone group 还指向bingo-A的radosgw地址
    ],
    "master_zone": "2dfd246d-bf16-4053-93e4-1f78570f775b", # master zone还指向bingo-A
    "zones": [
        {
            "id": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
            "name": "bingo-B",
            "endpoints": [
                "http://10.3.23.136:80"
            ],
            "log_meta": "false",
            "log_data": "false",
            "bucket_index_max_shards": 0,
            "read_only": "true", # 只读
        }
    ],
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
}

5.2.2 设置主区域

radosgw-admin zone modify --rgw-zone={zone-name} --master --default [ --read-only=false ]

说明：

  • –read-only：可选，由于bingo-B在规划中是read-only，现在bingo-B变为master zone，客户端需要写数据，要取消read-only状态
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
[root@ceph-single-cluster ~]# radosgw-admin zone modify --rgw-zone=bingo-B --master --default --read-only=false
2023-09-10 20:03:22.646446 7f2c932a9f80  0 NOTICE: overriding master zone: 2dfd246d-bf16-4053-93e4-1f78570f775b
{ # 回显内容有删减
    "id": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
    "name": "bingo-B",
    "domain_root": "bingo-B.rgw.meta:root",
    "control_pool": "bingo-B.rgw.control",
    "gc_pool": "bingo-B.rgw.log:gc",
    "lc_pool": "bingo-B.rgw.log:lc",
    "log_pool": "bingo-B.rgw.log",
    "intent_log_pool": "bingo-B.rgw.log:intent",
    "usage_log_pool": "bingo-B.rgw.log:usage",
    "reshard_pool": "bingo-B.rgw.log:reshard",
    "user_keys_pool": "bingo-B.rgw.meta:users.keys",
    "user_email_pool": "bingo-B.rgw.meta:users.email",
    "user_swift_pool": "bingo-B.rgw.meta:users.swift",
    "user_uid_pool": "bingo-B.rgw.meta:users.uid",
    "system_key": {
        "access_key": "WB55YP5G6WSB36PQLM2Z",
        "secret_key": "aXyw6Ck6MV85OZaC3bgwaMYB3pI7Dr4i9ogyBIti"
    },
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
}

更新zone group的url

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
[root@ceph-single-cluster ~]# radosgw-admin zonegroup modify --rgw-realm=gz --rgw-zonegroup=bingo --endpoints=http://10.3.23.136:80 --master --default
{ # 回显内容有删减
    "id": "89129545-7900-46a3-be71-943a85bba582",
    "name": "bingo",
    "api_name": "default",
    "is_master": "true",
    "endpoints": [
        "http://10.3.23.136:80"
    ],
    "master_zone": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
    "zones": [
        {
            "id": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
            "name": "bingo-B",
            "endpoints": [
                "http://10.3.23.136:80"
            ],
            "log_meta": "false",
            "log_data": "false",
            "bucket_index_max_shards": 0,
            "read_only": "false",
        }
    ],
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
}

验证：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
[root@ceph-single-cluster ~]# radosgw-admin zonegroup get
{ # 回显内容有删减
    "id": "89129545-7900-46a3-be71-943a85bba582",
    "name": "bingo",
    "api_name": "default",
    "is_master": "true",
    "endpoints": [
        "http://10.3.23.136:80" # zone group的url已经更新
    ],
    "master_zone": "3b06b85f-8266-4e44-91ee-e0b334f619c5", # bingo-B为master zone
    "zones": [
        {
            "id": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
            "name": "bingo-B",
            "endpoints": [
                "http://10.3.23.136:80"
            ],
            "log_meta": "false",
            "log_data": "false",
            "bucket_index_max_shards": 0,
            "read_only": "false",
        }
    ],
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
}

5.2.3 应用变更

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
[root@ceph-single-cluster ~]# radosgw-admin period update --commit
{ # 回显内容有删减
    "id": "8f69cdf6-13af-476a-9647-6a174ea3bcc9",
    "epoch": 1,
    "predecessor_uuid": "d45e8a76-c27f-4ecc-b381-7504feafbddb",
    "sync_status": [
        ""
    ],
    "period_map": {
        "id": "8f69cdf6-13af-476a-9647-6a174ea3bcc9",
        "zonegroups": [
            {
                "id": "89129545-7900-46a3-be71-943a85bba582",
                "name": "bingo",
                "api_name": "default",
                "is_master": "true",
                "endpoints": [
                    "http://10.3.23.136:80"
                ],
                "master_zone": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
                "zones": [
                    {
                        "id": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
                        "name": "bingo-B",
                        "endpoints": [
                            "http://10.3.23.136:80"
                        ],
                        "log_meta": "false",
                        "log_data": "false",
                        "bucket_index_max_shards": 0,
                        "read_only": "false",
                    }
                ],
                "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
            }
        ],
    },
    "master_zonegroup": "89129545-7900-46a3-be71-943a85bba582",
    "master_zone": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5",
    "realm_name": "gz",
    "realm_epoch": 5
}

5.2.4 重启服务

重启radosgw服务

systemctl restart ceph-radosgw@radosgw

1
[root@ceph-single-cluster ~]# systemctl restart ceph-radosgw@radosgw

5.2.5 验证

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
[root@ceph-single-cluster ~]# radosgw-admin sync status
          realm 31a49490-d7f4-42c6-ad88-15493474a3d5 (gz)
      zonegroup 89129545-7900-46a3-be71-943a85bba582 (bingo)
           zone 3b06b85f-8266-4e44-91ee-e0b334f619c5 (bingo-B)
  metadata sync no sync (zone is master)

[root@ceph-single-cluster ~]# radosgw-admin zonegroup get
{ # 回显内容有删减
    "id": "89129545-7900-46a3-be71-943a85bba582",
    "name": "bingo",
    "api_name": "default",
    "is_master": "true",
    "endpoints": [
        "http://10.3.23.136:80"
    ],
    "master_zone": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
    "zones": [
        {
            "id": "3b06b85f-8266-4e44-91ee-e0b334f619c5",
            "name": "bingo-B",
            "endpoints": [
                "http://10.3.23.136:80"
            ],
            "log_meta": "false",
            "log_data": "false",
            "bucket_index_max_shards": 0,
            "read_only": "false",
        }
    ],
    "realm_id": "31a49490-d7f4-42c6-ad88-15493474a3d5"
}
